Flight Controller

ES-Flight Master

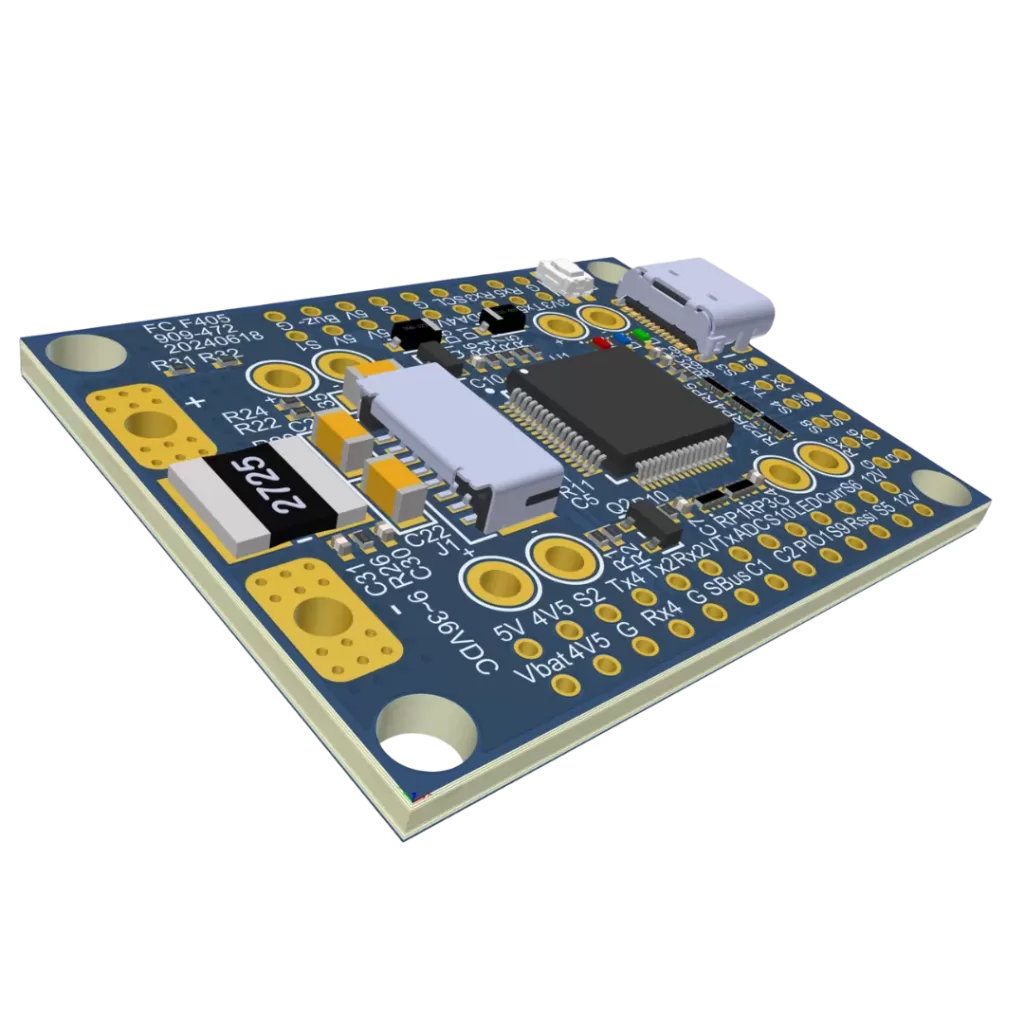

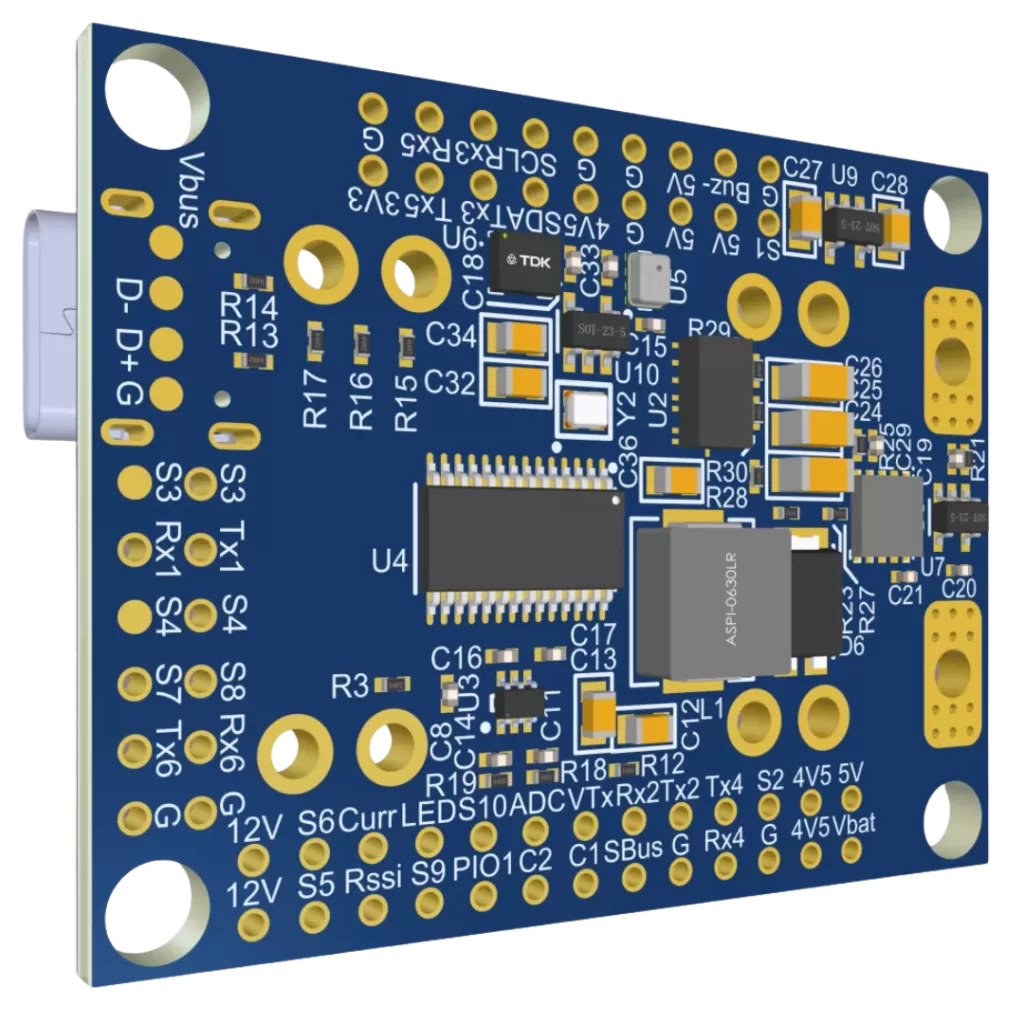

The ES FlightMaster, developed by ES Systems, is a high-performance flight controller primarily used in drones and UAV systems to manage flight operations. It is designed to provide precise control for multirotor and fixed-wing UAVs, offering seamless performance for a variety of applications such as aerial photography, mapping, inspections, long-range agriculture and environmental monitoring, and FPV racing. The ES FlightMaster also supports autonomous systems for tasks like deliveries and plays a key role in research and innovation within drone technology.
Description
Specifications
Applications
Similar Products
Description

The ES FlightMaster integrates advanced hardware for superior flight control, offering compatibility with major UAV firmware platforms like INAV, ArduPilot, and BetaFlight. It is designed to handle a range of applications, from high-speed FPV racing drones to long-range, mission-critical UAV operations. With its robust features, including an onboard barometer, IMU for high-precision motion sensing, and a blackbox for flight data logging, the ES FlightMaster ensures reliable, high-quality performance.

Specifications
MCU
168MHz STM32F405RGT6
IMU
ICM42688-P (SPI) for high-precision motion sensing
Barometer
SPL06-001 (I2C) for accurate altitude measurement
OSD
AT7456E (SPI) integrated On-Screen Display
Blackbox
MicroSD slot for flight data logging
UARTs
6x UARTs, 1x Softserial_Tx for versatile communication
PWM Outputs
11x (8x Dshot-compatible for Betaflight/ArduPilot)
ADC Monitors
4x (VBAT, Current, RSSI, Airspeed)
Dual Camera Input
Switchable for FPV flexibility
Built-in-SBUS Inverter
For easy SBUS receiver integration
Power Distribution Board (PDB)
Input Voltage 9-36V
BEC Outputs
5V 1.5A, 12V 2A
Current Sensor
220A, 3.3V ADC for INAV, ArduPilot & BetaFlight
Battery Voltage Divider
Scalable for different firmware needs
Firmware Compatibility
ArduPilot, INAV, BetaFlight
Dimensions
35 x 45mm
Weight
10g
Mounting
30.5 x 30.5mm, Φ4mm with grommets Φ3mm
Name
Type
File
Card_ES-FlightMaster Flyer
flyer
834.46 K
Applications
Aerial Photography and Videography

Capturing high-quality images and videos for real estate, media, and more.

Agricultural Monitoring

Long-range UAVs for crop monitoring, precision farming, and environmental analysis.

FPV Racing Drones

High-speed, precision control for competitive drone racing.

Autonomous UAV Systems

Supporting tasks like deliveries and autonomous inspections across various industries.
