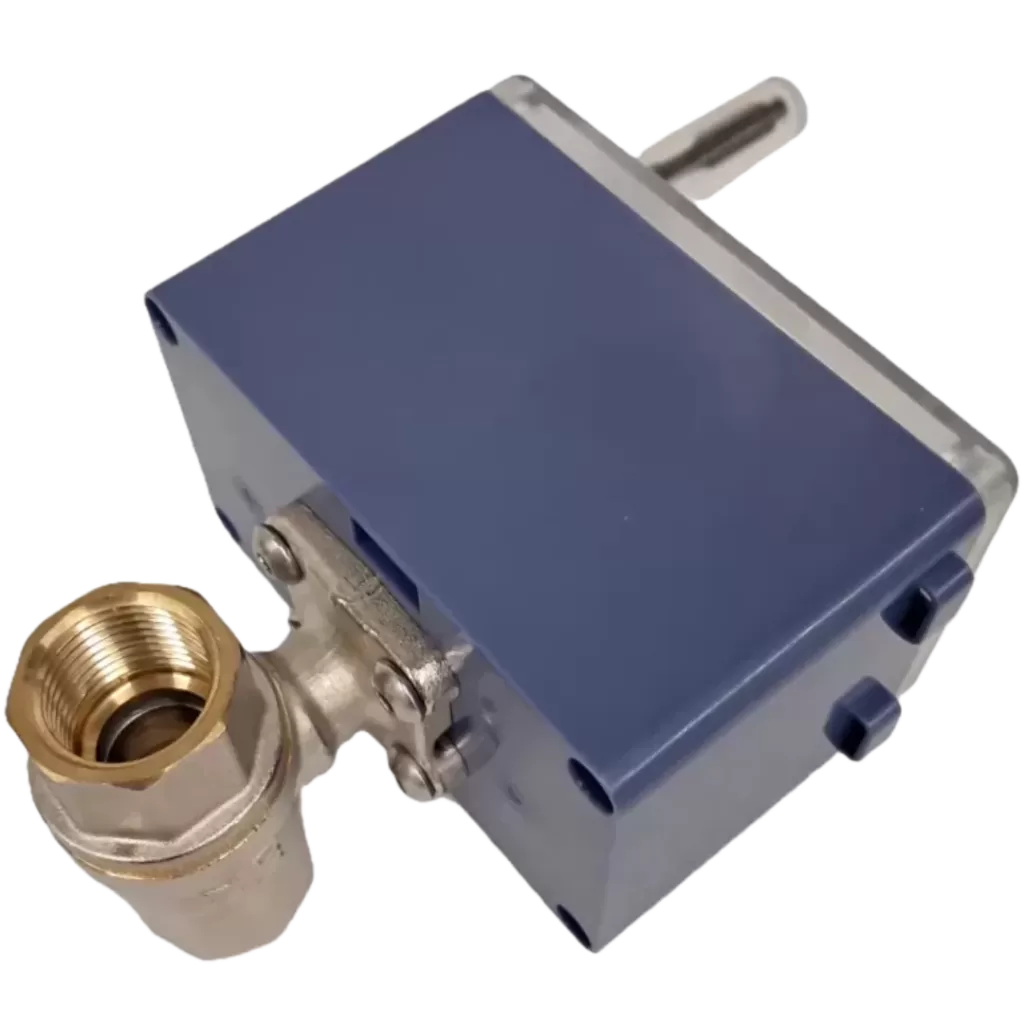

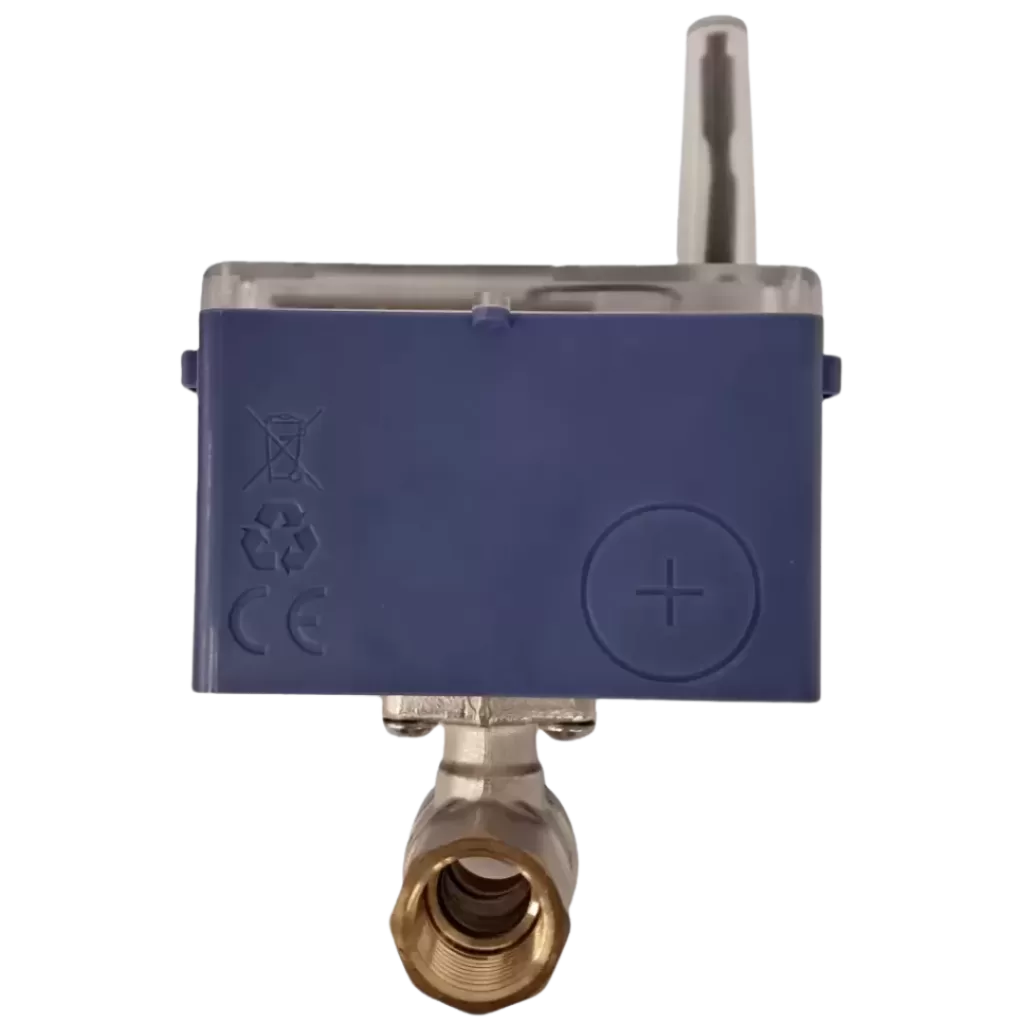

Wireless-Remote Controlled Valve

ESLV Smart Valve

The ESLV-SmartValve by ES Systems is a state-of-the-art wireless, remote-controlled valve designed for efficient water supply management. Utilizing LoRaWAN® technology, it ensures secure, long-range communication with minimal power consumption. The valve provides remote Open/Close/Flow control, real-time status monitoring, and leak detection, optimizing water management while enhancing sustainability and operational efficiency.
Description
Specifications
Applications
Similar Products
Description

The ESLV-SmartValve is engineered for reliability and versatility in water management applications. Its innovative design features a slow-opening/closing function to prevent hydraulic shock, enhancing system durability. The valve operates on LoRaWAN® Class A with AES-128 encryption, ensuring secure, bidirectional communication and event reporting. With options for integrated LCD screens or LED indicators, it offers flexible monitoring capabilities. A long battery life of up to 10 years and firmware upgrades over the air (FUOTA) ensure that the valve remains functional and future-ready for evolving operational demands.

Specifications
Available Sizes
½” (DN15) to 2” (DN50)
Installation Method
Horizontal, Vertical, or Inclined
Connection Method
Female/Female Thread
Operating Pressure
Up to 25 Bar (PN25)
Valve Type
Ball/Butterfly with multiple flow positions (0%, 5%, 25%, 50%, 100%)
Material
Brass (CW617 acc. EN12165)
Operating Temperature
Water: 0.1°C–90°C; Ambient: -20°C–80°C
Degree of Protection
IP67/IP68, IK05
Power Source
Replaceable 3.6V, 9000mAh LiSOCl2 battery (10-year life with 2 weekly controls)
Communication Protocol
LoRaWAN® Class A, with AES-128 encryption
Broadcast Frequency
868MHz; Receive Sensitivity: Up to -140dBm
Indicators
LCD screen, LED, battery level, wireless status, faucet status
Compliance
CE Certified
Name
Type
File
Flyer ESLV – Smart Valve
Flyer
802.43 K
Applications
Smart Agriculture

ES Systems’ devices Enable efficient, automated irrigation systems to conserve water .

Municipal Water Management

Enhancing leak detection and real-time flow control.

Industrial Water Systems

Managing critical water supply operations in factories and plants.

Emergency Flood Prevention

Providing remote control for quick shutoff in case of water-related emergencies.

Request a Quote
