State-of-the-art miniature devices, MEMS sensors have the power to transform industries by measuring physical quantities with incredible precision.
MEMS technology has enabled the development of highly integrated systems that monitor process performance and offer essential feedback for automated control systems in manufacturing plants, not to mention that it ensures safety by precisely measuring pressure within tanks and pipelines, mitigating potential hazards.
Let’s delve deeper into the fascinating world of MEMS sensors, improved productivity, and cost reduction, shedding light on their working principles, applications, and their vital role in the industrial field.
What is a MEMS sensor?
MEMS sensors are miniature devices used to measure physical quantities such as pressure, temperature, acceleration and magnetic fields.
Micro-Electro-Mechanical Systems (MEMS) sensors are widely utilized across a wide variety of applications, from medical to automotive systems and with a ruggedized mechanical envelopes they are built to withstand harsh environmental conditions.
The ESCP-MIS2 sensor incorporates ES Systems capacitive MEMS sensor that is built using ES Systems exclusive SOI micro-fabrication TM30 process for absolute capacitive pressure sensors, withstanding temperatures ranging from -20oC to +85oC.
MEMS sensors are made up of both electronic and mechanical components. Microelectronic components handle sensing and processing of data while mechanical parts provide physical feedback – this combination makes MEMS sensors small, reliable, and cost-effective.
What Do MEMS Sensors Do?
MEMS devices and especially MEMS pressure sensors have become indispensable industrial tools, providing measurements in closed systems or monitoring changes in atmospheric conditions.

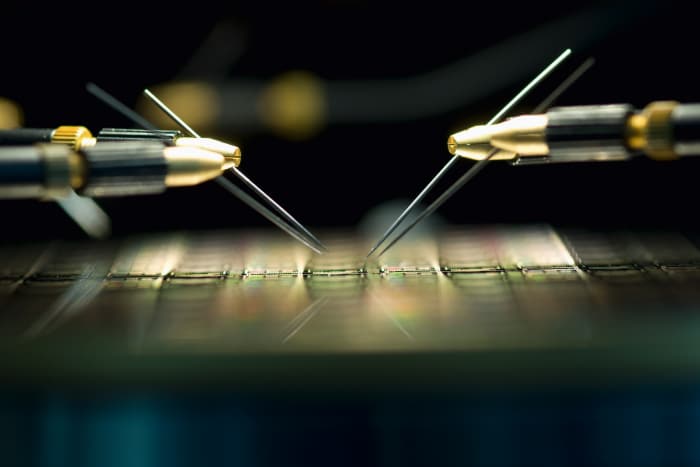

What Is MEMS Technology?
MEMS technology has transformed manufacturing and design practices significantly over recent years.
Microfabrication and nanotechnology come together to form an approach that creates small devices with both mechanical and electrical components that can be utilized across industries ranging from medical applications to consumer electronics, allowing us to make more efficient products by exploiting their small size and high precision.
MEMS fabrication uses tools such as lithography, etching, deposition and bonding to fabricate structures on the micron scale for use across various industries. Engineers now have access to MEMS fabrication technology which offers endless opportunities for innovation and advancement across several fields of endeavor.
What are some popular examples of MEMS sensors?
Check out some of the different types of MEMS sensors that are currently available and how they can be utilized in various situations.
- MEMS Pressure Sensors: MEMS pressure sensors are commonly utilized in industrial automation systems, automotive systems and medical devices for measuring and monitoring pressure in closed systems such as tanks or pipelines.
- MEMS Accelerometers: These accelerometers are used in aerospace, automotive and consumer electronics to measure acceleration, tilt, vibration and movement to provide motion detection and stability control capabilities.
- MEMS Gyroscopes: Used extensively in navigation systems, drones and virtual reality devices to measure angular velocity and orientation with great precision.
- MEMS Temperature Sensors: These temperature sensors are utilized in HVAC systems, industrial processes and medical equipment in order to monitor and regulate temperatures for optimal performance and safety.
- MEMS Microphones: MEMS microphones can be found in smartphones, wearables and audio systems to capture and convert sound waves into electrical signals for clear audio reproduction.
- MEMS Gas/Flow Sensors: These sensors are widely utilized for environmental monitoring, medical device development, automotive emissions control systems and industrial safety systems to detect and measure various gases or fluid flow rates to ensure quality and safety standards are upheld.
How does a MEMS pressure sensor work?
Simply, MEMS sensors detect changes in resistance or capacitance when exposed to force on their surface.
More specifically, it features a suspended mass between two capacitive plates that when tilted create a difference in electric potential resulting in a change of capacitance.
Capacitance changes can then be translated into electrical signals which can be recognized and understood by devices connected to them.
Let’s walk through how MEMS sensors operate:
- Sensing Element: At the heart of every MEMS pressure sensor is its sensing element – composed of a diaphragm and fixed electrode. The diaphragm acts like a flexible thin membrane that deforms in response to pressure applications.
- Capacitance Variation: As pressure is applied to a diaphragm, its deflection causes distance changes between it and a fixed electrode; these changes alter capacitance between components of a circuit.
- Converting Capacitance Change into Electrical Signal: Once converted, changes in capacitance are converted into an electrical signal by way of a sensor designed in such a way as to correspond with applied pressure.
- Signal Interpretation: The electrical signal generated by a MEMS pressure sensor is sent to an electronic circuit for interpretation and processing, which may either output analog or digital output depending on its design requirements.
- Output Representation: Once interpreted, the signal is further processed to accurately represent pressure measurements. It may then be displayed on a digital screen or recorded into a data logger for future use in control and automation applications for various industrial uses.
MEMS pressure sensors have quickly become an indispensable “tool”, providing accurate readings even under extreme conditions.
MEMS pressure sensors use capacitance changes resulting from diaphragm deflection to provide precise pressure measurements, with their small size, high sensitivity, and ability to operate in harsh environments making them invaluable devices across industries like automotive, aerospace, medical and industrial automation.
What are the main MEMS pressure sensor applications in industry today?
MEMS technology has become an ever-more significant component of industrial processes.
MEMS technology has enabled the creation of highly integrated systems to measure, control, and monitor a range of processes and operations – providing accurate measurements of physical parameters like pressure, temperature, acceleration and flow rate which are all vital in an industrial setting. Utilised to measure these factors are MEMS sensors, for instance these applications could include:
- Monitoring process performance in manufacturing plants
- Offering feedback for automated control systems
- Measuring tank and pipe pressure for safety purposes
- Establishing smart factories using advanced automation techniques that enhance productivity while decreasing costs, and more
Final Thoughts on MEMS Sensors
As engineering and technology continue to advance, MEMS sensors have proven themselves as transformative tools, offering industries precision and efficiency.
MEMS devices have revolutionized industries with their compact size and extraordinary accuracy, leading to further innovations, advancements, breakthroughs, and breakthroughs that drive highly integrated systems that monitor, control, optimize industrial processes and enable real-time insights and informed decision-making.
Accept the challenge of pushing boundaries, exploring uncharted waters, and using MEMS sensors to build smarter, more efficient systems with the assistance of ES Systems. Our wide range of products will allow industries to reach greater heights together.
