In this article, we are going to examine the most common ways of calculating and converting air velocity to flow rate.

** **

**Converting velocity to volumetric flow rate**

Volumetric flow rate is the volume of fluid which passes per unit of time.

Flow meter technologies such as differential pressure, magnetic, thermal, turbine, ultrasonic and vortex all measure flow rate as a function of fluid velocity. Please refer to the respective flow meter datasheet for detailed information and specifications.

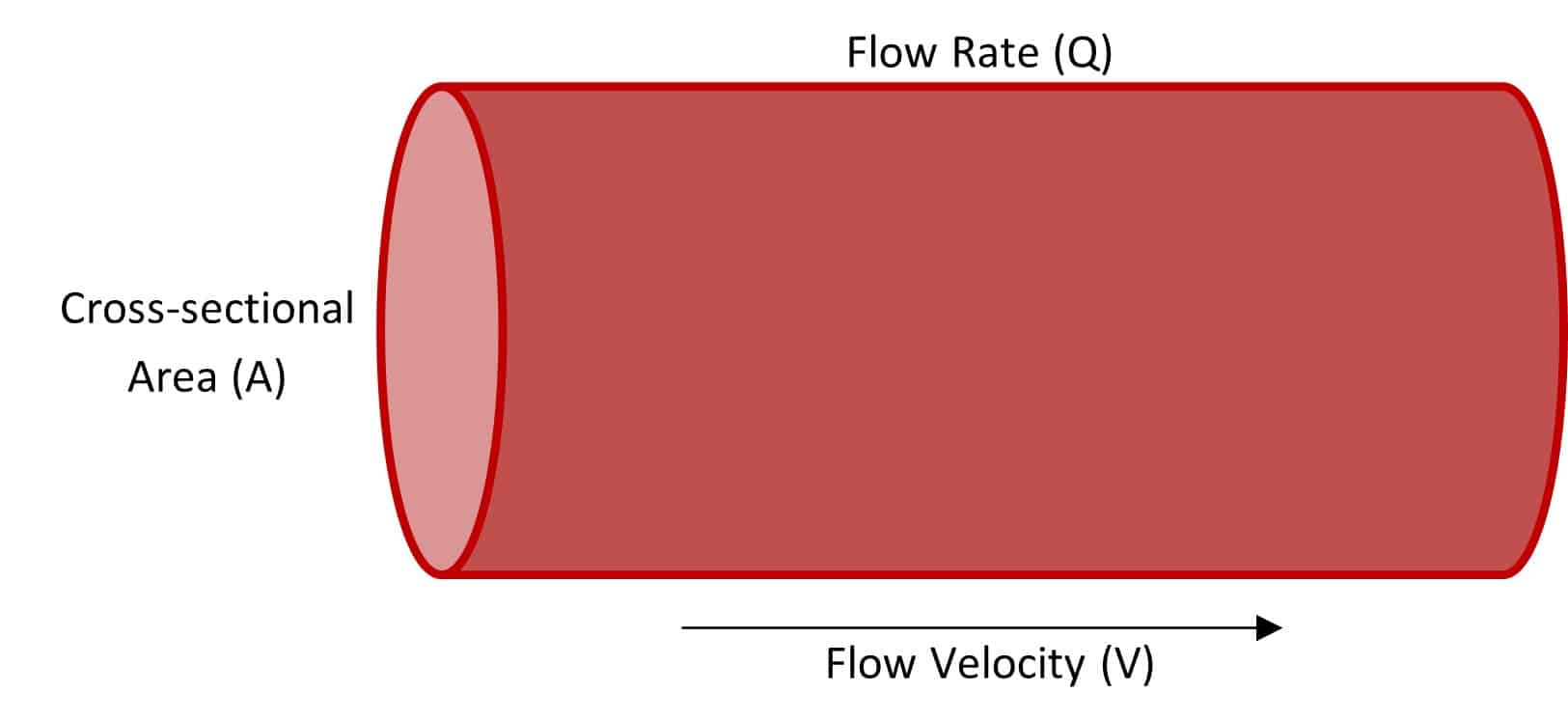

You can calculate the volumetric flow rate by using the equation shown below:

**volumetric Flow Rate (Q) = Flow Velocity (V) × Cross-sectional Area (A)**

Where,

Q is the Volumetric Flow Rate in m^{3}/s

V is the Flow Velocity in m/s

A is the cross-sectional area in mm^{2}

For example, if a gas had velocity (V) 15 m/s and was traveling through a pipe of 20mm inner diameter then the volumetric Flow Rate (Q) would be 0.004712 m^{3}/s which is equal to 282.74 l/min.

**Converting velocity to mass flow rate**

Similarly, volumetric flow rate can be converted to mass flow rate if the density of the gas measured is known.

Where,

ṁ is the mass flow rate in kg/s

ρ is the density in kg/m^{3}

From the two equations above it can be derived that:

**Mass Flow Rate (ṁ) = V × A × ρ**

Using the same example as above, if the density was 998 kg/m^{3 }then the volumetric flow rate of 282.74 l/min would be equivalent to a mass flow rate of 4.703 kg/s.

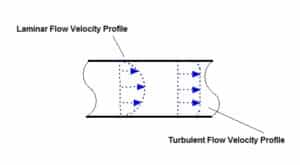

**Velocity profiles – Laminar & turbulent flow**

**Laminar flow** is described as fluid particles following smooth paths in layers, with each layer flowing smoothly past the adjacent layers with little to no mixing in fluid dynamics. The fluid continues to flow without lateral mixing at low velocities, and neighboring layers float past each other like playing cards.

Turbulence, also known as **turbulent flow**, is a fluid motion characterized by chaotic variations in pressure and flow rate in fluid mechanics.

Laminar flow can be, in general, achieved by providing a 20x the internal diameter of the tube used straight tube length in upstream and downstream flow. For example, if a 25mm ID tube is used, if you connect a 50cm straight tube at the upstream and downstream of the flow meter, you can expect a laminar flow.

In most applications, turbulent flow is present in the application. This increases the flow noise observed by the flow meter.

**Volumetric & mass flow rate units**

Volumetric flow rate can be expressed in a variety of units with the most common being m^{3}/s, m^{3}/min, m^{3}/h in metric units and the respective imperial units. **Volumetric flow rate** is also typically expressed in l/s, l/min, l/h.

Mass flow rate is usually referenced in kg/s, kg/min, kg/h in metric units and in lb/s, lb/min, lb/h in the respective imperial units. **Mass flow rate** can be also expressed in l/s, l/min, l/h but with one condition.

Due to the fact that for mass flow measurement the gas density must be taken into account, when using l/min unit for mass flow, the temperature and pressure reference conditions must be noted.

There are two common reference conditions for mass flow measurements. These are:

**Normal**, expressed at 0^{o}C temperature and 1013 mbar pressure and denoted as ln/s, ln/min, ln/h**Standard**, expressed at 20^{o}C temperature and 1013 mbar pressure and denoted as ls/s, ls/min, ls/h

Converting mass flow from reference to ambient conditions can be achieved using the following formula:

Where,

Pressure is in mbar

Temperature is in Kelvin

**Converting differential pressure to flow velocity**

Before going into **how to convert differential pressure to flow velocity**, it is important to note the definitions of **static**, **dynamic** and **total pressure**.

__What’s pressure?__

The constant physical force exerted on or against an object by something (such as air) in contact with it is known as **pressure**.

__What’s static pressure?__

The pressure you get when the fluid isn’t flowing or when you’re moving with the fluid is called static pressure. While now moving, air would press against you equally in all directions. Because of the conservation law, static pressure decreases as the speed increases.

__What’s total pressure?__

The pressure a fluid exerts when it comes to a full stop is known as absolute (or total) pressure. When you face the wind and the air collides with your body, total pressure acts on you.

__What’s dynamic pressure?__

Dynamic pressure is the pressure exerted by a fluid as it travels. It refers to the difference between total and static pressure.

In order to measure flow via differential pressure, a deliberate obstacle has to be introduced in the flow line in order to impose the increased differential pressure measurement. The obstacle can be anything, from an orifice to a simple narrowing of the tube.

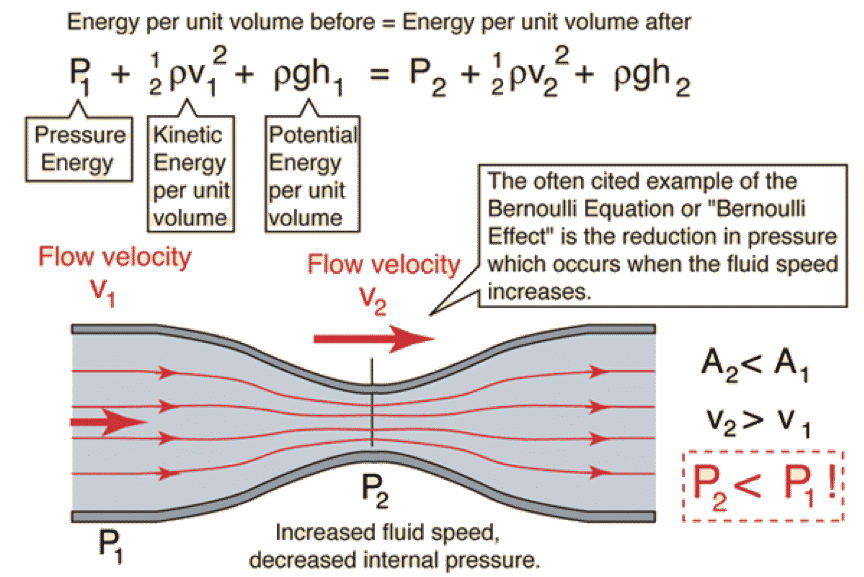

Using Bernoulli’s principle, you can correlate flow velocity with differential pressure using the following formula:

**
**

**Measuring velocity and air flow**

**ESCP-BMS1**– a series of board mountable pressure sensors targeting a variety of markets requiring high resolution and accuracy for gas pressure measurements.**ESRF-ESF**– an inline gas flow sensor based on the hot-film anemometer principle for mass gas flow measurements.**ESRF-HF**– a family of insertion gas flow transmitters based on the hot-film anemometer principle for mass gas flow measurements.
